Z-Type Elevator
Product overview

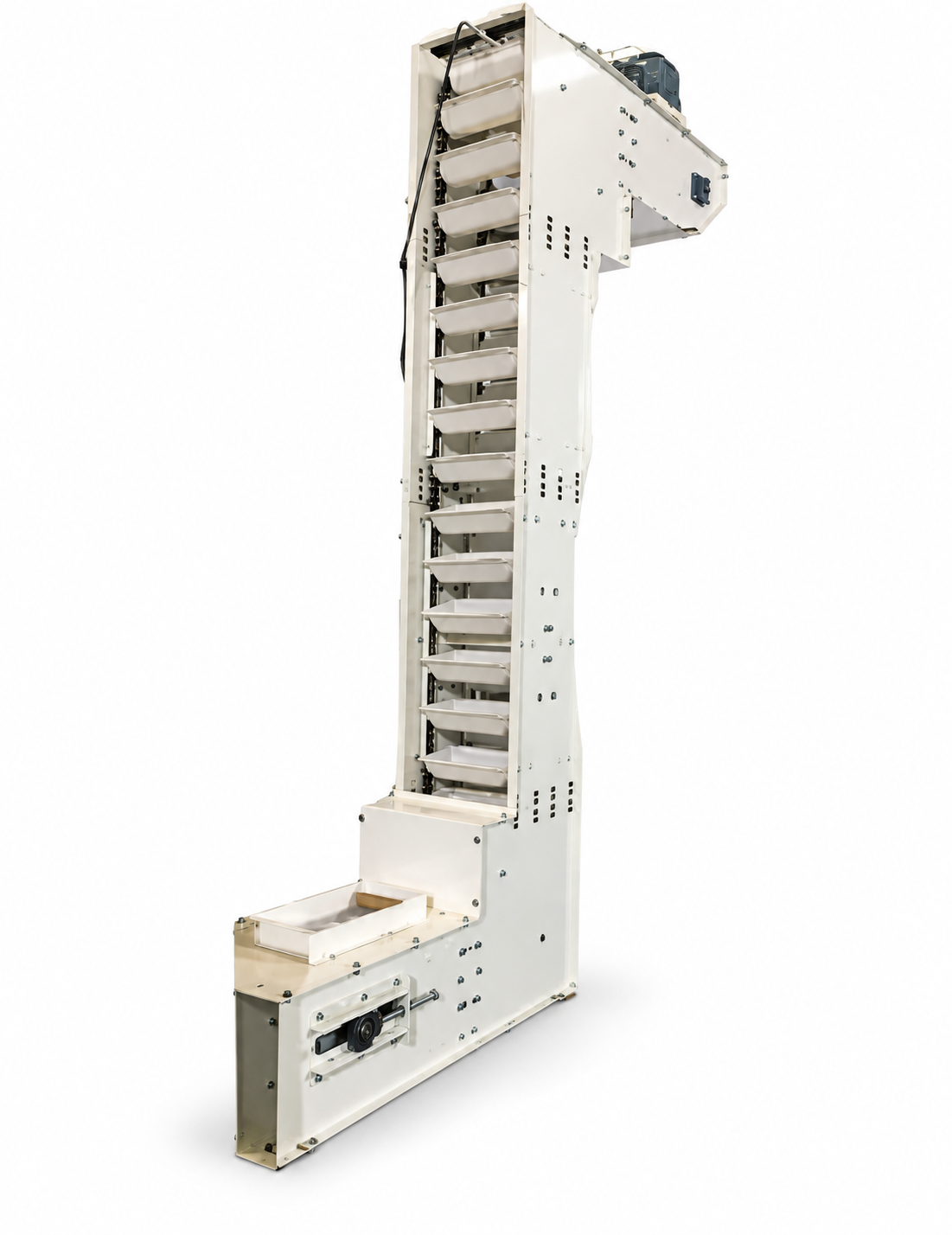

Z-Type Elevator
Z Type Bucket Elevator combines horizontal and vertical handling in a space-saving enclosed path. It reduces spillage and dust, with bucket size, lifting height and discharge points customizable to the plant layout.
Technical information
Specifications
| Model No. | 15 |
|---|---|
| Application | Cotton seed, granules and dry bulk material |
| Capacity | Typically 2–15 TPH; higher capacities possible |
| Belt / chain | Heavy-duty |
| Drive | Geared motor |
| Controls | DOL / VFD + PLC integration |
| Material | MS |
| Speed | Automatic |
| Power | 3 Phase |
| Voltage | 415 V |
| Safety | Emergency stop, overload protection, guards and interlocks |
| Frame finish | Red oxide primer + industrial paint |
