Storage Bin Hopper
Product overview

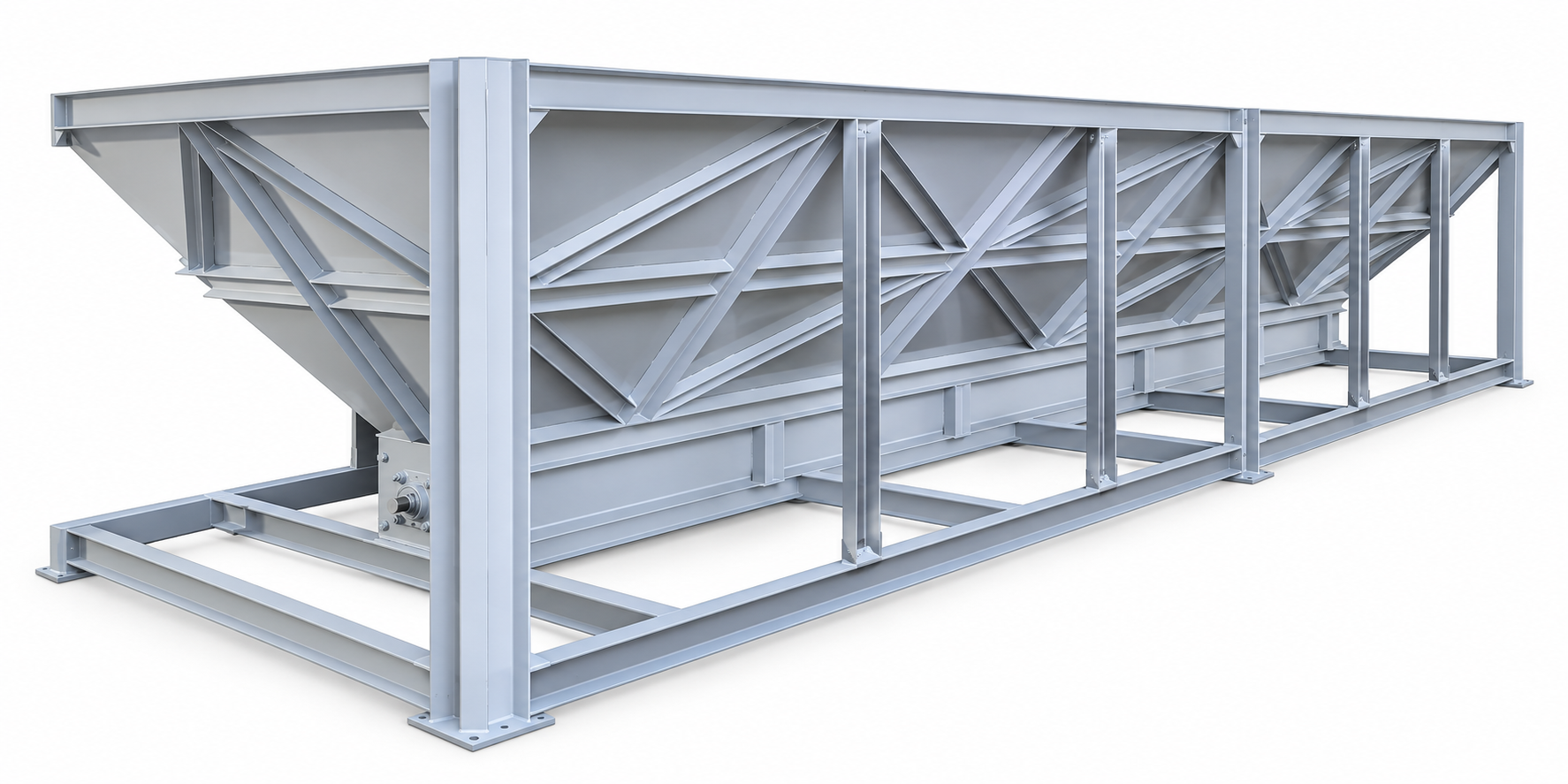

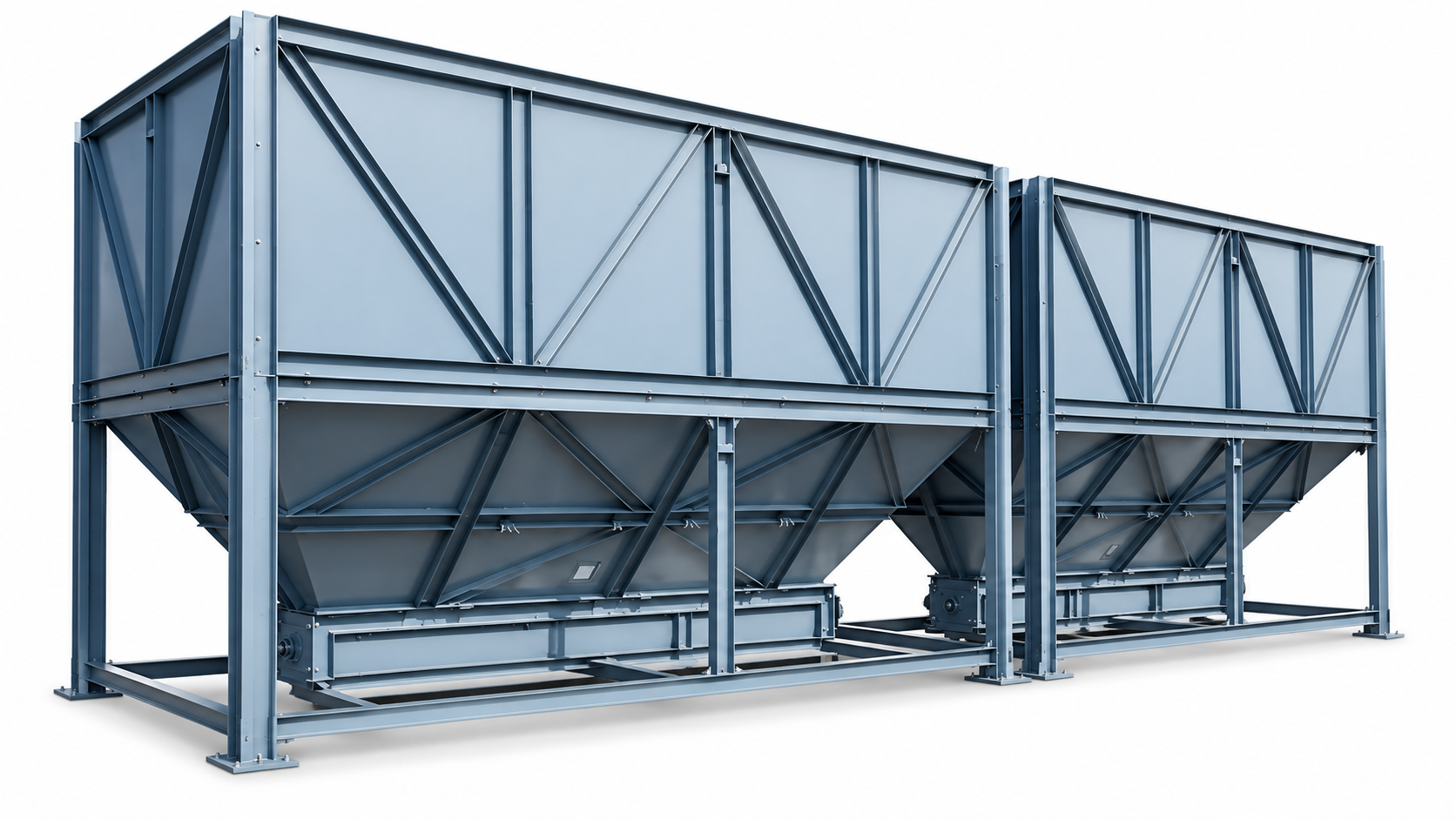

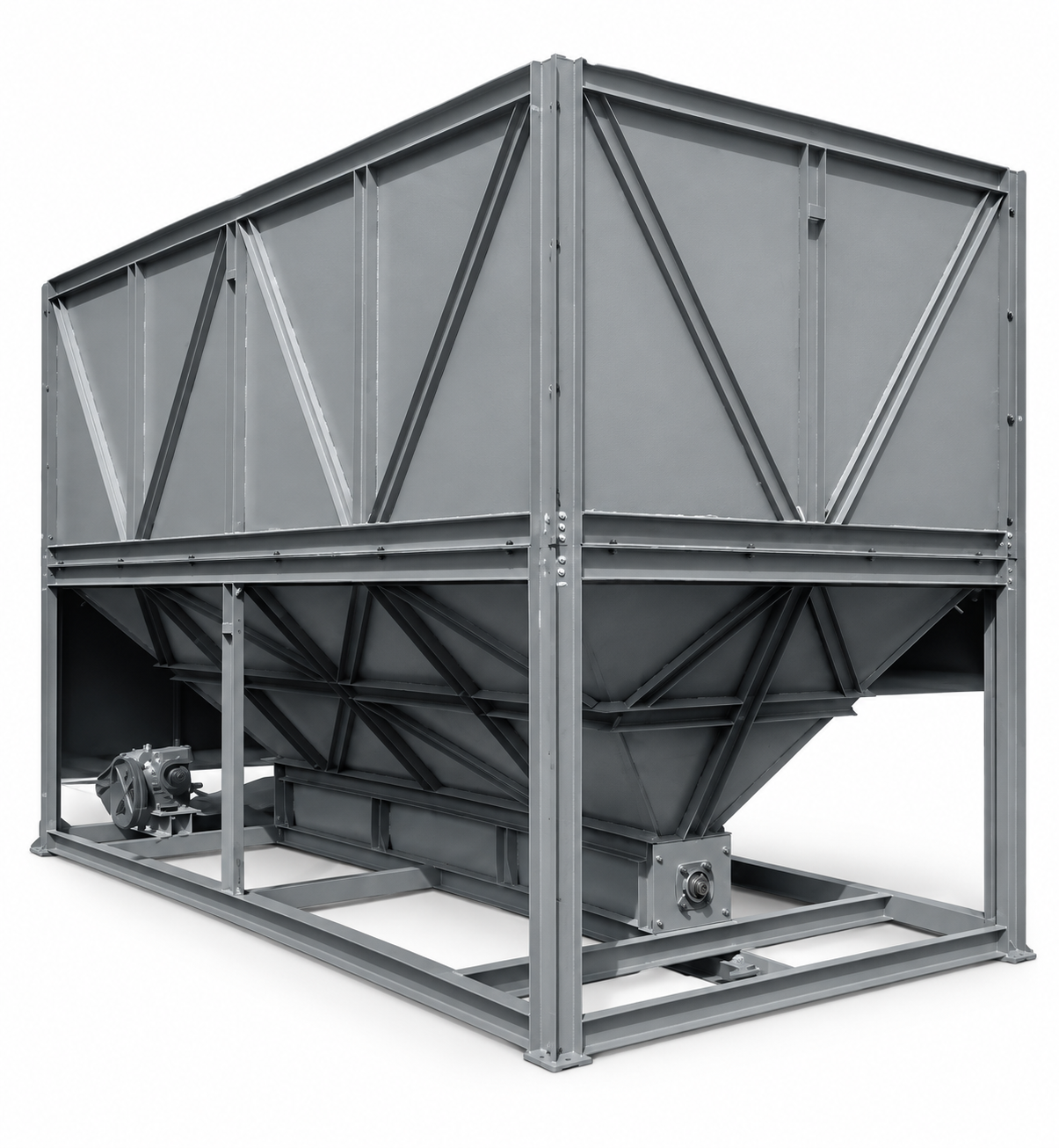

Storage Bin Hopper
Our Cotton Seed Storage Bin Hopper is designed for safe, efficient, and convenient storage and handling of cotton seeds. Manufactured with robust construction and quality materials, it ensures smooth material flow, easy discharge, and reliable performance in cotton seed processing plants. The hopper can be customized to meet specific capacity and operational requirements, making it an ideal solution for efficient cotton seed storage and feeding.
Technical information
Specifications
| Model No. | 1 | 1.1 | 1.2 |
|---|---|---|---|
| Application | Oilseeds, grain and pulses, nuts and seeds, animal feed, biomass, agro-processing and industrial bulk solids | ||
| Construction | Heavy-duty welded MS structure | ||
| Capacity | 12 ton/day | 15 ton/day | 20 ton/day |
| Length | 16 feet | 20 feet | 25 feet |
| Width | 8 feet | ||
| Height | 10 feet | ||
| Motor | 3 HP | ||
| RPM | 960 | ||
| Power | 3 Phase | ||
| Approx. weight | 2600 kg | ||
| Surface finish | Red oxide primer with industrial enamel; PU paint or powder coating if required |
