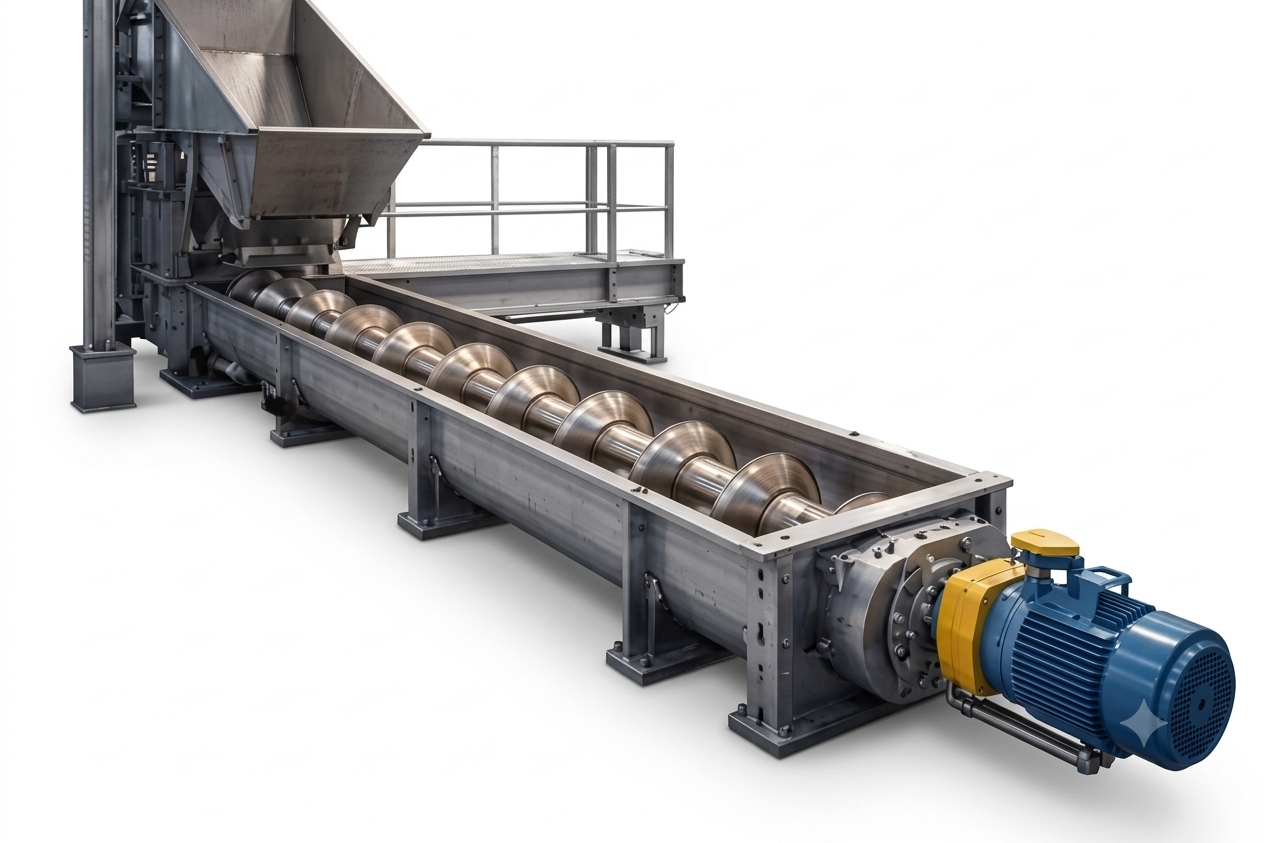

Screw Conveyor
Product overview
Screw Conveyor
Screw Conveyor provides enclosed and controlled transfer of seeds, cake, powder and other bulk materials with consistent feeding between processing stages.
Technical information
Specifications
| Model No. | 21 |
|---|---|

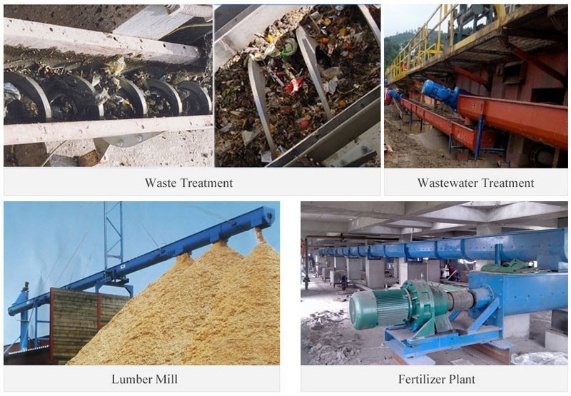

| Application | Cottonseed, expeller feeding, oil cake, husk, meal, hopper discharge, inter-machine transfer and inclined conveying |
| Type | Horizontal / inclined |
| Capacity | 2–30 ton/hour |
| Screw diameter | 150 / 200 / 300 / 400 mm |
| Screw pitch | 0.5D–1.0D |
| Screw flight | Continuous helical |
| Shaft | MS solid |
| Shaft diameter | 40–80 mm |
| Casing | MS fabricated U-trough or tubular |
| Length | 10+ feet |
| Speed | 30–150 RPM |
| Drive | Geared motor |
| Power | 3 Phase |
| Voltage | 415 V |
| Safety | Emergency stop and overload protection |
